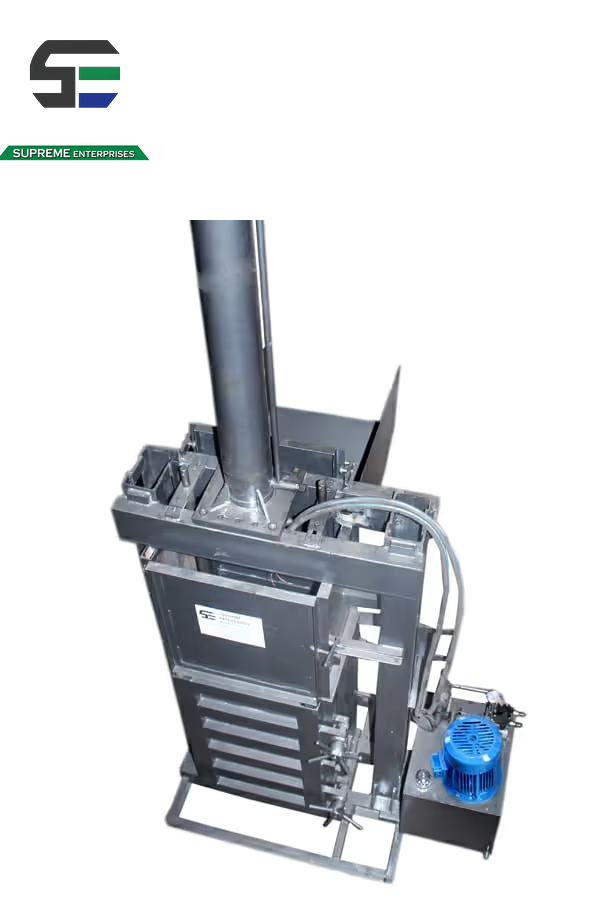

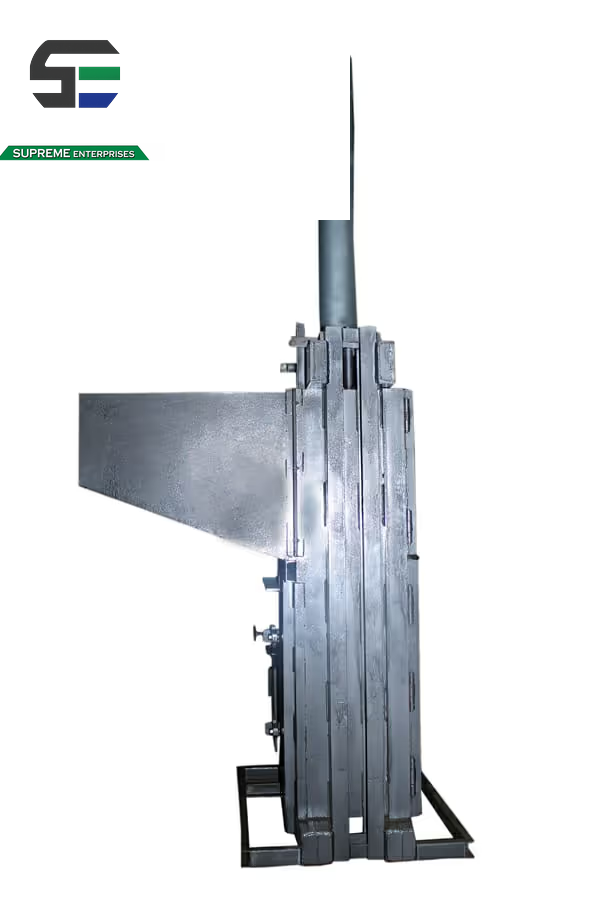

Single Box Bailing Machine
Compact vertical hydraulic baler built for efficient compression of PET bottles, paper, cardboard, cotton, and textile waste. Ideal for retail stores, warehouses, recycling centers, garment industries, and small to medium manufacturing units.
Product Overview
Our Single Box Bailing Machine is engineered for maximum efficiency and durability. It provides high-density compression for a variety of materials, streamlining waste management and recycling processes for numerous industries. Its robust hydraulic system ensures stable performance under heavy workloads.
Technical Specifications
Machine: Vertically Operated Single Box Hydraulic Bailing Machine
Applications: Pet Bottles, Paper, Cardboards, Cotton, Raffia, Plastic Films, Etc.
| Box Size | 20" (L) x 27.5" (W) x 5' (H) | 26" (L) x 36"(W) x 5' (H) | 20" (L) x 27.5" (W) x 8' (H) |
|---|---|---|---|
| Bale Size | 500x700x(600-900)mm | 660x812x(600-900)mm | 500x700x(600-900)mm |
| Type of Scrap | PET Bottle, Paper, Raffia, Plastic Films, Etc. | PET Bottle, Paper, Raffia, Plastic Films, Etc. | PET Bottle, Paper, Raffia, Plastic Films, Etc. |
| Time / Bales | 45 mins / Bale | 45 mins / Bale | 45 mins / Bale |
| Bale weight |
160 - 170 kgs - PET 130 - 140 kgs - Paper |
170 - 190 kgs - PET 150 - 160 kgs - Paper |
180 - 200 kgs - PET 160 - 180 kgs - Paper |
| Max Pressure | 60 Ton / 50 Tons /40 Tons /30 Tons | 60 Ton / 50 Tons /40 Tons /30 Tons | 60 Ton / 50 Tons /40 Tons /30 Tons |
| Side Plate Thickness | 12mm / 10 mm / 8 mm / 6 mm | 12mm / 10 mm / 8 mm / 6 mm | 12mm / 10 mm / 8 mm / 6 mm |
| Cylinder Size |
180/125 mm 160/110 mm 150/100 mm 140/95 mm |
180/125 mm 160/110 mm 150/100 mm 140/95 mm |
180/125 mm 160/110 mm 150 /100 mm 140 /95 mm |
| Electric Motor |
10 HP 3 Phase induction Motor |
10 HP 3 Phase induction Motor |
10 HP 3 Phase induction Motor |
| Power | 380V/415V | 380V/415V | 380V/415V |
| Oil Tank | 200 Liter | 200 Liter | 200 Liter |
| Machine Weight | 1.6 Tons | 1.8 Tons | 2 Tons |
Machine Advantages
Higher Productivity
Engineered for continuous operation and maximum output.
Space Saving
Compact design minimizes floor space requirements.
Reduced Labour Cost
Automated features require minimal manual intervention.
Eco Friendly
Energy-efficient motors reduce carbon footprint.
Suitable Applications
Frequently Asked Questions
What is the advantage of a Single Box Hydraulic Baler over other baler types? +
The Single Box Hydraulic Baler is compact, cost-effective, and perfect for businesses with limited floor space. It offers vertical compression in a single chamber, making it ideal for small recycling units, retail stores, and warehouses that need to bale cardboard, paper, or plastic waste efficiently.
How much pressure does the Single Box Baler apply, and what bale sizes can it produce? +
Our Single Box Baler delivers high hydraulic pressure to produce dense, uniform bales. Bale dimensions and weight can be customized based on your requirements — typical bale weights range from 20–80 kg. The machine is designed for easy bale removal with a simple door-open mechanism.
Is this machine suitable for small businesses and startups in the recycling industry? +
Absolutely. The Single Box Hydraulic Baler is one of the most affordable entry points into the baling industry. It requires minimal floor space, low power consumption, and can be operated by a single person with basic training. It is an excellent choice for startups, small scrap dealers, and municipal waste collection centres.
